Large robust pump motor built to withstand high operational axial thrusts

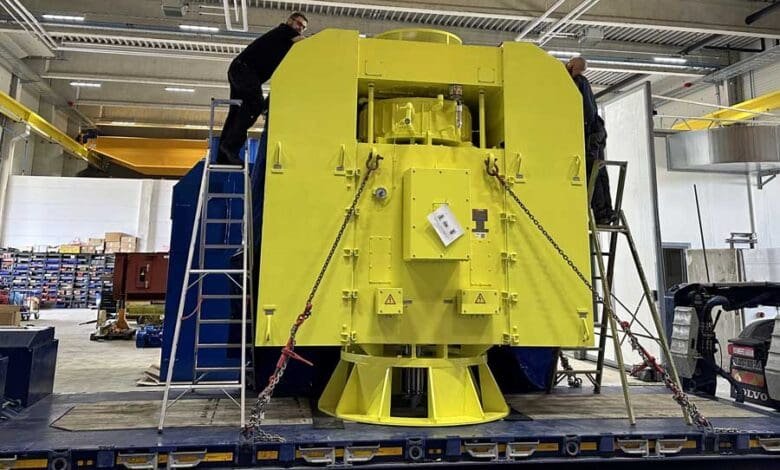

Menzel Elektromotoren has manufactured a large high-voltage motor in vertical construction type IM 3011 (IM V1) to drive a pump.

Since the motor has to absorb high dynamic axial loads, it has a special bearing design. The upper thrust bearing is water-cooled; it runs in an oil sump and is subject to permanent oil level and temperature monitoring. The lower bearing is grease-lubricated and self-cooling.

The entire motor and particularly the non-drive-end bearing plate were also reinforced for added strength. The flange and shaft dimensions were required to comply with exacting specifications.

At the customer’s request, Menzel also configured the pump connection flange, with recesses through which the condition of the coupling can be checked at any time.

The MEBKSL-type squirrel cage motor features 1100kW rated power, 4160V rated voltage and a rated torque of 20598Nm at a speed of 509rpm. It features an IP55 rating and IC 611 cooling, with a two-part air-to-air heat exchanger fitted on both sides of the motor for uniform cooling at Central American ambient temperatures.
